NIOCOM Pumps

CORROSION FREE / VINYLESTER RESIN REINFORCED WITH FIBERGLASS

Our company is aware that not only the world's seas and coasts, but the entire global ecosystem and climate must be protected. Together with our customers, we consistently use our innovative resources to reduce the environmental impact of our products.

NIOTEC has always been aware that new technologies are always needed in this industry. This is one of the reasons why NIOTEC continually strives to remain a technological developer for aggregates and components made of composite, as other well-known companies also do in other areas. Not only do we want to use the latest technology on board, but we also want to advance environmental awareness.

By using our energy-saving technologies, not only noise and vibration can be significantly reduced, but also Co2 emissions.

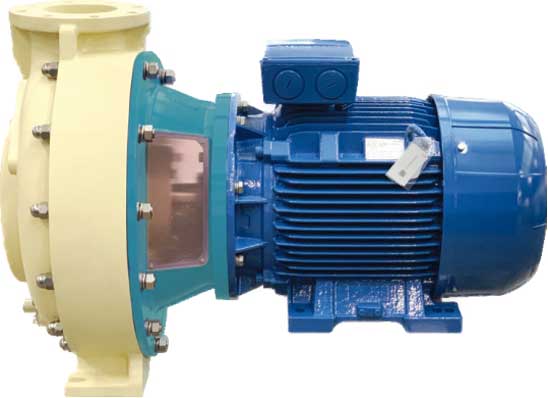

pumps-pic

Available in 3 types and settable in many different configurations

NIOCOM-Pumps made of (GRV) glass fiber reinforced vinylester resin have crucial advantages and are ideal for seawater applications and corrosive liquids and atmospheres.

pomp
  • Long-coupled “LCS” or close-coupled “CCS” types
  • Compact type “CVS” for small spaces
  • Flow rate up to 1350 m3/h
  • Excellent mechanical strength and chemical resistance
  • Vinylester resin reinforced with fiberglass is resistant from liquid aggression (corrosion) and therefore does not release particles or substances that can alter the liquid
  • 5 different resin mix to adapt the pump to the various liquid pumped (chlorine, fluoride acid…)
  • Impeller made of GRV reinforced with carbon fiber for more strength
  • Low weight due to material and corresponding technology
  • GRV accessories to strengthen the pump or adapt it to any system
pomp
pomp

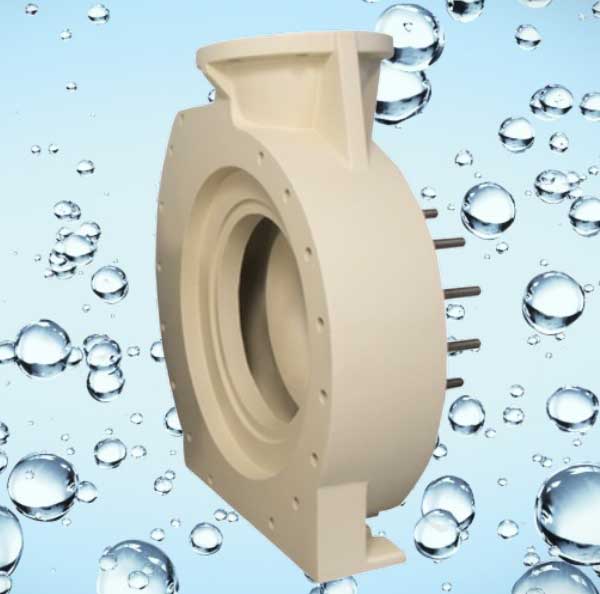

  • One-piece pump body

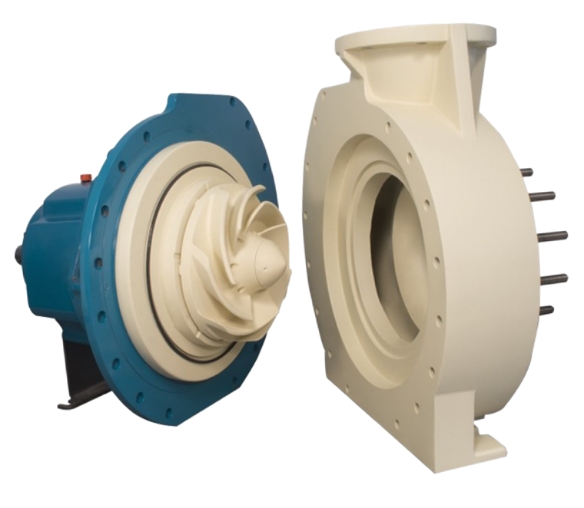

  • Back pull-out system for long-coupled version
  • ANSI/ASME B73.1 conformity
  • ATEX Zone 2 (Serie II 3/3 IIB T4) conformity with V1X-version (conductive liner)
  • Baseplate entirely made of GRV with adjustment device
  • Feet and flanges reinforced in Kevlar
  • Customizable with the TAILOR-MADE program

The perfect match between chemical resistance, mechanical strength, lightweight, and good quality-price ratio makes NIOCOM-Pumps the solution as an alternative to metallic pump for all corrosive and seawater applications:
